Xclear Immersion UV-C

Xclear Immersion UV-C

Immersion UV-C systems can be installed in filter tanks, allowing water to pass through without any resistance or pressure loss.

Advantages

  • Can be integrated into existing filter systems or filter chambers
  • Ideal when there is no space for an inline UV unit
  • The plastic end of the lamp has a 32 mm diameter, compatible with standard 32 mm pipe clips for mounting inside a tank

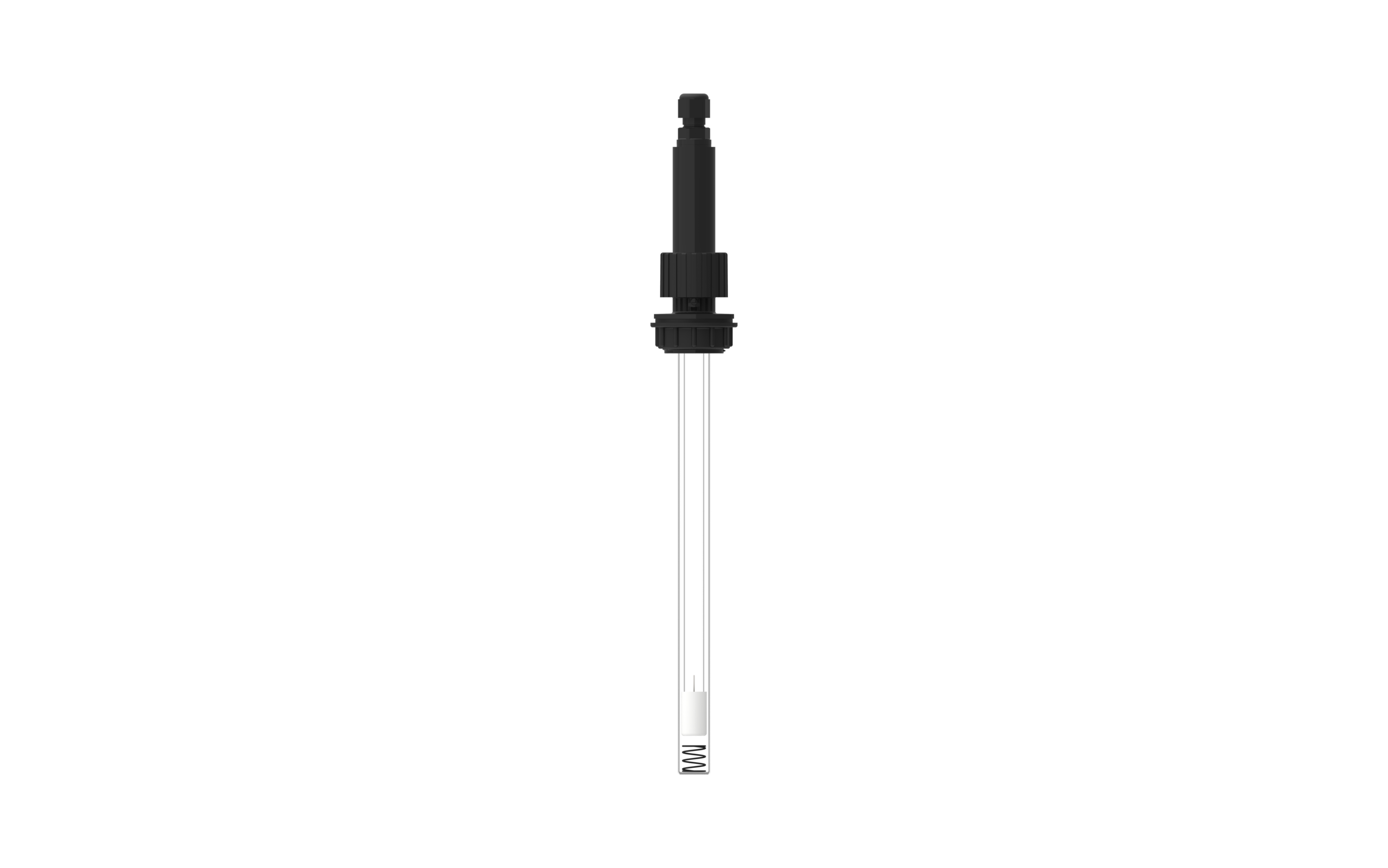

  • A special tank connector is available for direct installation into filters (see picture)
  • Tank connector: 1½”
Manuals Leaflet
Request More Information
Buy spare parts Become a Dealer
Xclear Immersion UV-C
Xclear Immersion UV-C
Xclear Immersion UV-C
Xclear Immersion UV-C
Xclear Immersion UV-C
Specification 40 W 75 W 40 W Amalgam 80 W Amalgam
Art. number XP01402 XP01752 XP01402.1 XP01802
Type 40 W 75 W 40 W Amalgam 80 W Amalgam
EAN 8714404041157 8714404041294 8714404041225 8714404041362
IP rating electrics IP54 IP54 IP54 IP54
IP rating fitting IPX8 IPX8 IPX8 IPX8
Housing material ABS ABS ABS ABS
Operating environment ballast temperature 1-40 °C 1-40 °C 1-40 °C 1-40 °C
Lifespan lamp 9.000 h 9.000 h 16.000 h 16.000 h
Indicator No No ✓ ✓
