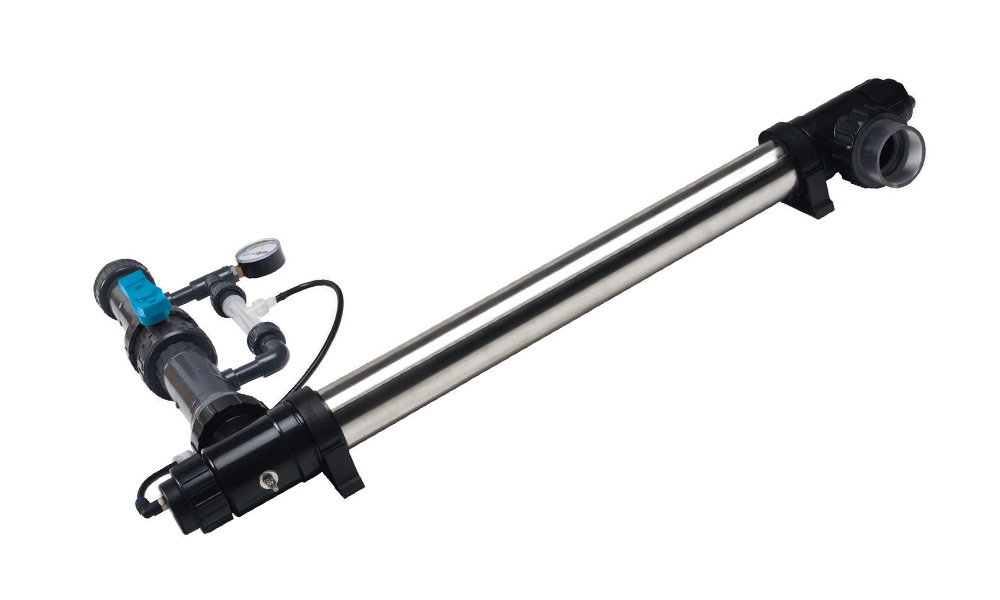

AOP Compact Ozone + UV-C HP

The AOP Compact Ozone + UV-C HP is the ideal unit to combine ozone and our Tech UV-C technology.

This revolutionary combination of ozone and UV-C makes a pond with an unbelievable clarity possible! With this Xclear AOP Compact Ozone & UV-C unit on your pond system you are able to keep your water fresh, crystal clear and especially hygienic clean.

Operation

Connect the Xclear AOP Compact Ozone & UV-C HP on to your pond system. Using a pump, the water is pumped into the unit through the supplied reactor. Because of the water pressure in the reactor, air is sucked through the venturi system. Air is sucked into the unit via the air valve and flows through the area between the quartz glass and the AOP Compact Ozone & UV-C lamp. Because air enters the unit via the lamp, it becomes loaded with ozone particles that were generated by the special AOP Compact Ozone & UV-C lamp, which produces 0.6 grams of ozone. After it has passed the ball valve, the ozone enriched air is then mixed with water in the reactor. The oxidation and sterilization take place here, and a powerful disinfection process is achieved. The water ozone mixture is then exposed to the UV-C radiation of the lamp. The UV-C breaks down the remaining ozone in the water, changing it into OH- (Hydroxyl radicals) which have a very high oxidation potential for extra clarity of your water.

Benefits

  • Including Venturi system and UV-C/Ozone combination lamp.
  • No residual ozone left in the water flowing out.
  • Reduces pathogens.
  • Reduces algae growth.
  • Removes organic matter.
  • Removes yellow colorants in the water.
  • Supports the performance of biological filters.
  • Reduces ammonia level.
  • Reduces nitrite level.
  • Including 63mm PVC unions with adaptors to 50mm/1½” fem. threading.

Technical specifications

Productcode

Type

UV-C lamp

Pond volume (L)

Max. flow (L/h)

Max. pressure

XH09752

AOP Compact Ozone + UV-C HP

75 Watt

50.000

25.000

2 Bar
